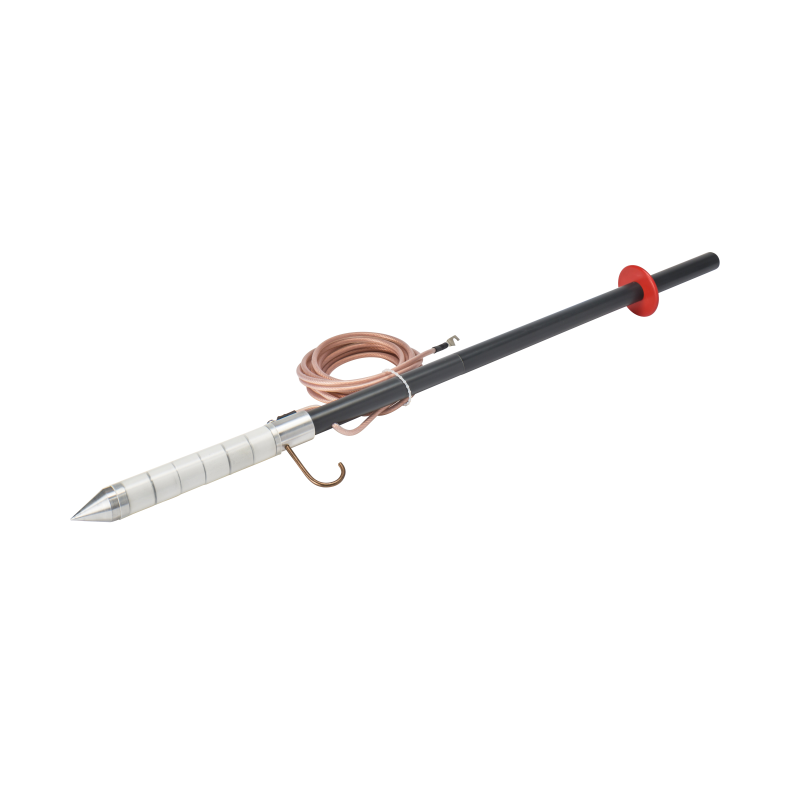

DP40 High Voltage DC Discharge Probe – T&R
High Voltage DC Resistive Discharge Sticks / Probes
Product Features :-
- For discharging high voltage cables after testing Earthing hook
- 40kV Maximum discharge voltage
- 7.2kJ Maximum discharge energy
- 6μF Maximum discharge capacitance
- 60kΩ Resistance & 900mm Length
- 5m Earth lead length
- 6mm² Earth lead CSA
- Highly flexible, clear silicone covered earth cable.

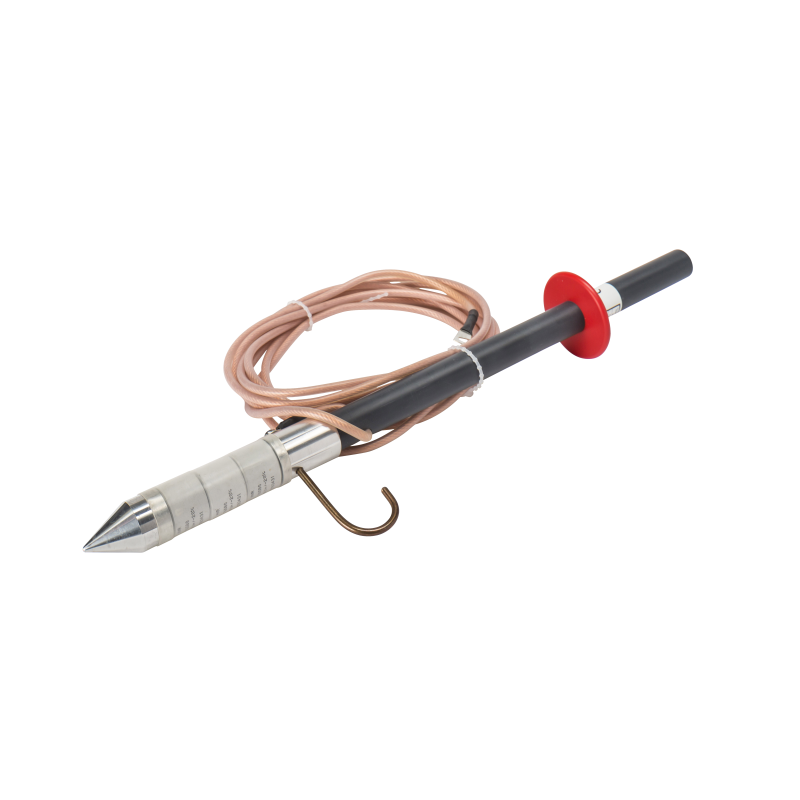

DP20 High Voltage DC Discharge Probe
Product Features :-
- For discharging high voltage cables after testing Earthing hook
- 20kV Maximum discharge voltage
- 3.6kJ Maximum discharge energy
- 12μF Maximum discharge capacitance
- 30kΩ Resistance & 530mm Length
- 5m Earth lead length
- 6mm² Earth lead CSA
- Highly flexible, clear silicone covered earth cable.

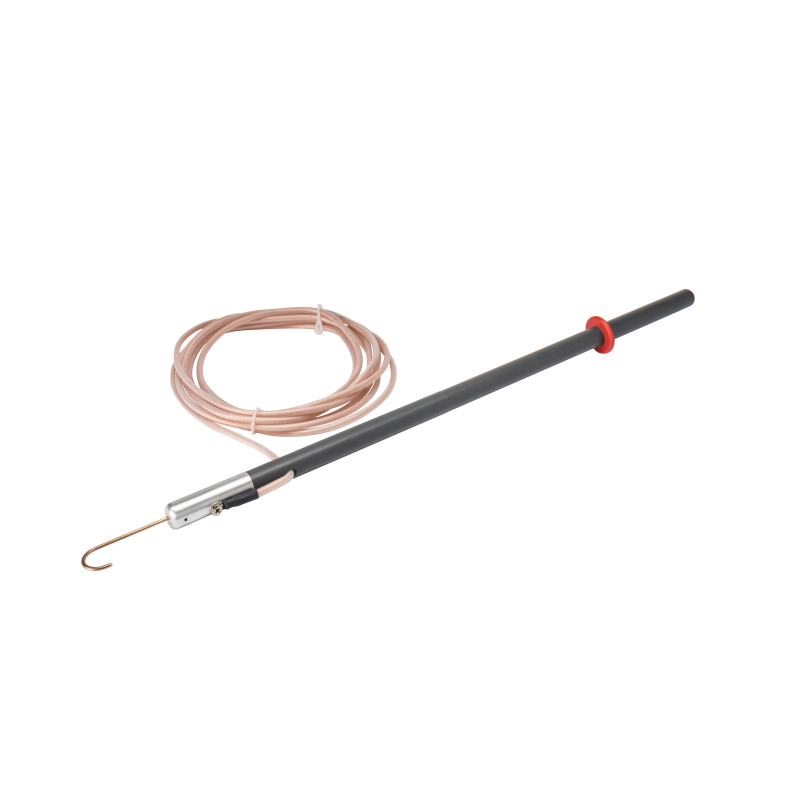

Earthing Sticks – ES 100 – T&R
Product Features :
- Used for earthing high voltage connections
- 100kV Maximum voltage
- 1270mm Length
- 5 metres Earth Lead Length
- 6mm2 Earth Lead CSA
- Clear silicone covered earth cable
- Highly flexible
Earthing Sticks – ES 50 – T&R
Product Features : –
- Used for earthing high voltage connections
- 50kV Maximum voltage
- 840mm Length & 5 meters Earth Lead Length
- Clear silicone covered earth cable
- Highly flexible
