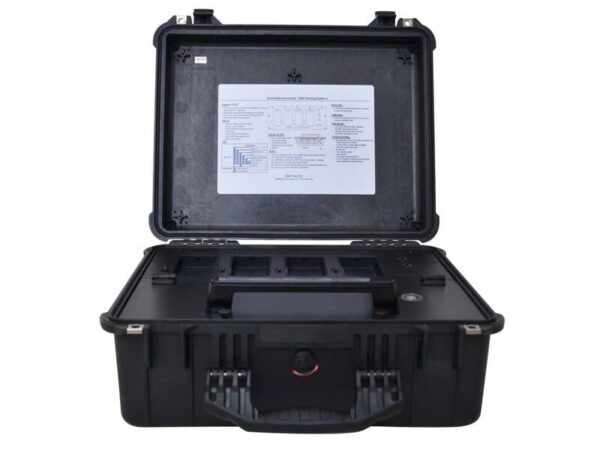

MGT Docking Station

Bump test and calibration are the key features to ensure the safety of devices and users. The MGT Docking Station v2. MGT docking station version II provides bump testing, event management and calibration from a simple to use multi-unit station and gives fleet or safety managers the ability to update configurations on large fleets. It also maintains the all important event logs that demonstrate users are working within company requirements.

Category:

Description

Specification

Size 52.5 x 43.7 x 21.3cm(20.66” x 17.20” x 8.40”)
Weight (Without gas cylinder) 11.0kg
Operating Temperature 41 to +104 ̊F (5 to +40 ̊C)
Warranty 2 years
Battery Type Rechargeable Lithium Ion
Battery Life 1,000 Bump Tests
LEDs 6 Blue LEDs for each unit(unit x 4), 3-color LED for power, Switch Back Light LED (Yellow, Green)
Memory USB 8GB Standard
Log Capacity Approximately Up to 5 million tests(8GB, removable USB memory)
Tests Performed Bump Test and Calibration
Information Stored Bump/Cal Logs, Individual Monitor Event Logs, Firmware and Unit Configurations
Gases Available LEL, CO, H2S and O2
Unit Compatibility Works with SP-MGT(N, P)
Calibration Gas Compatible with 58L & 116L cylinders
Interface Ethernet RJ-45(TCP/IP), 10Mb/s
Charging Adaptor DC12.0V, 3A/h



Download Manual:
