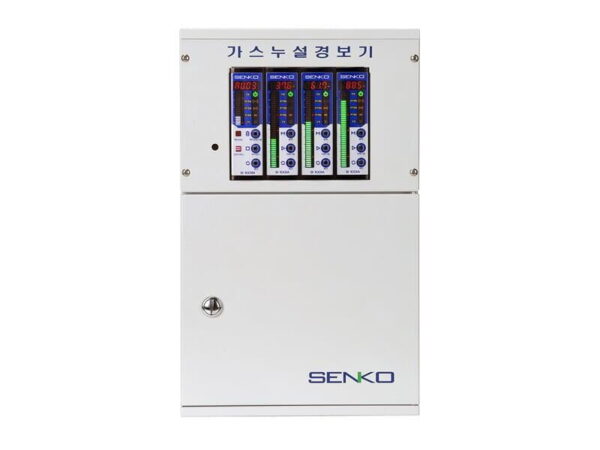

SI-100M Fixed Gas Detector
With a built-in 32bit High Speed CPU, the SI-100IM product can quickly process a variety of functions and provide precision data.
The SI-100IM product isa multi-type, composed of the Main Alarm Unit and the Alarm Display Unit, which has from one channel to 12 channels from one main alarm unit.
The SI-100IM product, designed as a DIN Type, can be installed in a variety of designs, such as Wall Mount Panel Type,Free Standing Type or 19 “Rack Type.
Description
Specifications
| Main CPU |
MKE02Z64 (32bit High Speed CPU)
|
| Input Power | DC24V |
| Output Power | DC24V |
| Input Power Display |
4Digit FND Digital Display
|
| Main Power Display |
Green LED Display, 18 Bar Graph
|
| Spare Power Display |
4Digit FND Digital Display, 18 Bar Graph
|
| Spare Power Monitoring |
Red LED Display
|
| Warning Alarm Display |
AU01~AU12Display consecutive changes of warning unit.)
|
| Spare Power Test |
Battery Test Switch
|
|
Alarm Output
|
Alarm 1 SPDT Relay Dry contact Signal Output
|
|
Alarm 2 SPDT Relay Dry contact Signal Output
|
|
|
Alarm 3 SPDT Relay Dry contact Signal Output
|
|
|
Selected output among DC12V Output Alarm1 to 3
|
|
| Operation Power |
DC12V~DC28V (DC12V or less CPU Sleep Mode No Display
|
| Size |
40(W) x 130(H) x104(D)
|
| Spare Power |
Ni-Cd Battery 18V 600mA (4Channel)
|
