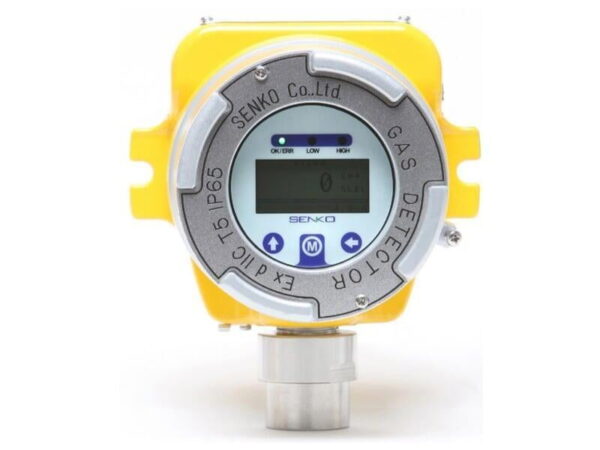

SI-100R Fixed Gas Detector
SI 100 R is a full function fixed gas detection head, with options for flammable gas (Catalytic pellistor and NDIR), oxygen and toxic gas detection. In excess of 30 sensor options are available.
The device is ATEX approved explosion proof, and has a local display allowing gas levels to be read and the device to fully configured without opening the casing. In addition to an industry standard 4-20mA output signal the SI-100 R also carries onboard alarm and fault relays.
Description
Specifications
| Measuring Gas | Combustible | Toxic Gas | Oxygen | |
| Measuring Method | Catalytic | IR | EC type | Galvanic |
| Measuring Range | 0-100%LEL | 0-100%LEL | Refer to table | 0-30%VOL |
| Sensor life time | 2 years | 2 years | 2 years | 2 years |
| Response time | 15sec/90% | 30sec/90% | Refer to table | 15sec/90% |
| Accuracy | 3%/Full scale | |||
| Resolution | 1%LEL | 1%LEL | Refer to table | 0.1%VOL |
| Parameter Control | Front 3 magnetic switch(calibration, maintenance, alarm setting) | |||
| Operation mode display | Digital LCD display, LCD Backlight, 4 Indicator LED | |||
| Alarm display | Visual : LCD alarm display, LCD Backlight, Indicator LED | |||
| Alarm output signal | Relay contact(Max 30Vdc, 5A) when Alarm occurred | |||
| Alarm level set | Programmable within detection range | |||
| Output signal | Analog : 4-20mA, Digital : RS-485(Option) | |||
| PC interact | PC interact RS_485(Option) | |||
| Cable/distance | Power + Signal cable : 3-wire 1.5sq(AWG16)/2,500m max RS-485 data communication cable : 1 pair(UL2919 RS-485)/1,200m max | |||
| Conduit connection | NPT 3/4″ (2way) | |||
| Program set mode | Alarm value(1,2,3 alarm) Alarm time(instant & delay)1~30min Alarm dead band Relay output on/off | |||
| Temperature/Humidity | -20℃~50℃/ 5% to 95% RH(Non-condensing) | |||
| Operating power | 10~30Vdc 600mA | |||
| Material | Aluminum, Stainless steel(STS304) | |||
| LCD size | 55(W) × 30(H) mm | |||
| Dimensions | 135(W) × 164(H) × 110(D)mm | |||
| Weight | 1.9kg | |||
| Approval | Ex d IIC T5 IP65 (ATEX) | |||
