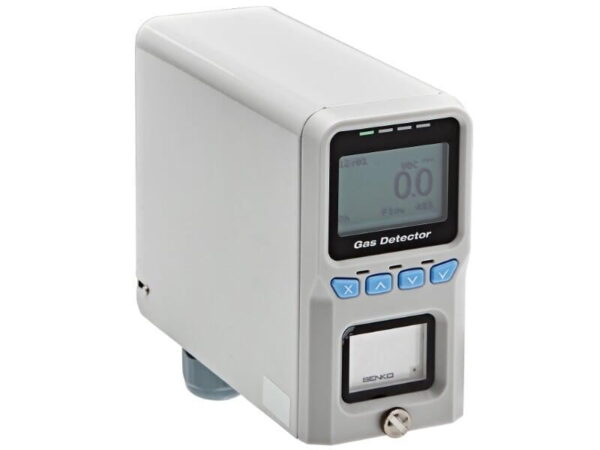

SI-H100 Sampling Type Gas Detector
Sampling typeGas Detector (SI-H100) measures sample gas by sensor cartridge in the case upon suction remotely on a real time basis.It is a device that assists to prevent or control a variety of gas related accidents including suffocation, intoxication, fire, explosion, corrosion, and so on in multiple semiconductor or industrial sites.
SI-H100measures the gas concentration on a real time basis constantly and shows alarm of dangerous concentration, fault situation, and so on, upon attaching on the wall. By operating four buttons in the lower part of the screen, environmental setting of the device can be easily amended.
Measured gas concentration is transmitted with 4-20mA output on a real time basis and external operations according to the desired situations can be variously organised by three internal relays. In addition, it is possible to output MODBUS/TCP, and to solve data transmission and power at the same time only with a LAN cable (PoE).
Description
Specifications
| Size | 124mm(H) X 65mm(W) X 155mm(D) |
| Weight | 2Kg |
| Operating voltage | DC : 24V ± 10%PoE : 36V~57V (Typical : 48V) |
| Flow rate | 500mL/min (MAX 900) |
| Power consumption | Approximately 5.0W |
| Measurement display | Graphic LCD (160 X 100), gas concentration, flow rate, alarm, rear light, alarm, device abnormality |
| Relay | Primary Alarm, Secondary Alarm, Fault Alarm |
| Output signal | Analog, 4-20mA |
| Digital communication | RS-485, TCP Ethernet |
| Sampling distance | Length of input gas tube: up to 30m (FEP tube) Length of exhaust gas tube: up to 30m (FEP tube) |
| input/output tube | 1/4”Teflon tube |
| Operating temperature | 0°C ~40°C |
| Certification | CE |
| Control/Set | 4 Button & RS485 & Ethernet |
| Warranty period of the device | 2 years |
| Warranty period of sensor cartridge | 1 year |
| Remote interface | Ethernet, RS-485 |
| Wiring | 4 to 20mA / DC power / Relay: up to 14 AWG |
